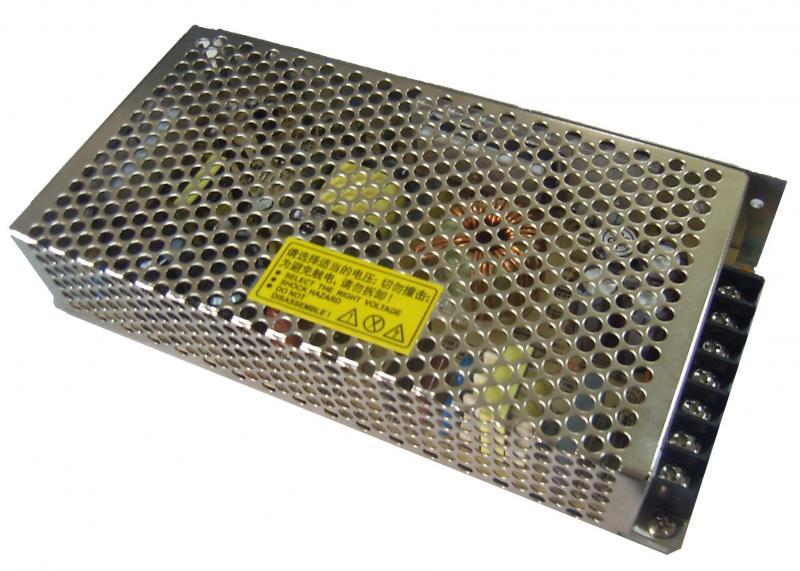

CMG-H150D24G+12-M

CMG-H150D24G+12-M

  • Brand:

    POWERLD
  • Item NO.:

    CMG-H150D24G+12-M
  • Wattage (W):

    150
  • Input:

    176~264Vac
  • Output:

    24+12V
  • PFC:

    N
  • Conformal Coating:

    N
  • Approval:

    CCC,EN62368-1
  • Dimension:

    199*99*38mm
  • Product Detail

Ø  High voltage input, 176~264Vac

Ø  High Efficiency, long life and High reliability

Ø  Output protections: SCP/OVP/OLP/OPP

Ø  Wide operating ambient temperature (-25~65)

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  2 years warranty

       Ø  Isolated Dual Outputs

MODEL

CMG-H150D24G+12-M

OUTPUT

DC Output

V1

24V

V2

12V

Rated Current

V1

6A

V2

5A

Current Range  Note 3

V1

0.5~5.0A(5.0Ais recommended)

V2

0.3~3.0A(3.0Ais recommended)

Ripple and Noise Note4

0~65

V1

240mV

V2

120mV

Ripple and Noise

-25~0

V1

480mV

V2

240mV

Voltage ADJ.  Range

21.6~26.4V

Voltage Accuracy

V1

±1.0%

V2

±10.0%

Line Regulation

V1

±0.5%

V2

±1.0%

Load Regulation

V1

±3.0%

V2

±10.0%

Set-up Time

1.5S (220Vac input, V1 @ 5A, V2 @ 3.0A)

Hold up Time

20mS(220Vac input, V1 @ 5A, V2 @ 3.0A)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

176Vac~264Vac

Frequency Range

47Hz--63Hz

Efficiency ( Typical)

≥80% (220Vac input, V1 @5A, V2 @3.0A)

AC Current (max.)

<1.9A

Inrush Current (Typical)

<50A@220Vac      Cold start

Leakage Current

Input—output:<0.25mA     Input—PG:<3.5mA

PROTECTION

Over Power

157~225W, Hiccup mode, auto recovery

Over Current

V1: 5.5~8.0A, Hiccup mode, auto recovery

Over Voltage

V1: 25.2~36V, Hiccup mode, auto recovery

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~65℃;  20%~90%RH  No condensing

Storage Temp. & Hum.

-30℃~85℃;  10%~95%RH  No condensing

SAFETY &EMC

(Note 5)

Safety Standards

GB4943/ EN60950

Withstand Voltage

Primary-Secondary:3.0KVac /10mA .Primary-PG:1.5KVac/10mA.

Secondary-PG: 0.5KVDC/10mA.  Output V1—V2: 0.5KVDC/10mA. Test time:1 min

Isolation Resistance

10M ohms

EMI Conduction&Radiation

Compliance to EN55022, CLASS B

Harmonic Current

Compliance to EN61000-3-2CLASS A

EMS Immunity

Compliance to EN61000-4-2,4,5,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension  (L*W*H)

199×99×38mm

Packing

20PCS/CTN, 15KGS, 0.04cbm

Cooling method

Cooling by free air convection

NOTE



1.     Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 24V/5A,12V/3.0A.

2.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

3.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

4.        The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

  • #
  • #
  • #
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products

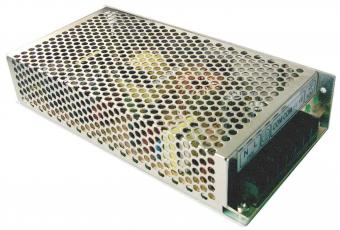

CMG-H150DXG+X power supply
