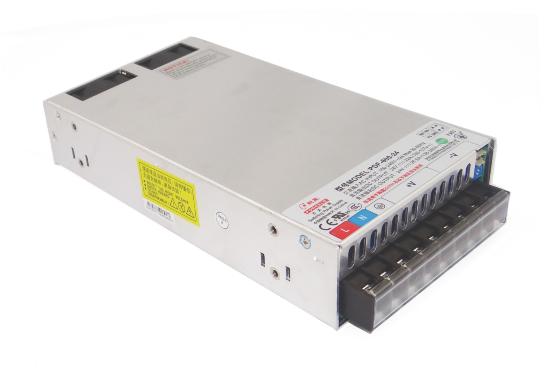

PDF-600-X

Ø  Universal input 80~264Vac or 113~370Vdc Ø  84W free air convection, 120W with 10CFM forced air Ø  High Efficiency, long life, high reliability Ø  Output protections: SCP/OVP/OCP/OPP Ø  Wide operating ambient temperature (-30℃~70℃) Ø  Operating altitude up to 4000m Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  Meet Class I and Class II(no ground required) device Ø  No load power consumption ≤0.35W Ø  Built-in 12V/0.5A auxiliary output Ø  4’’*2’’ Compact size Ø 3 years warranty   MODEL PS-120-24 OUTPUT DC Output 24V Rated Current (free air convection) 3.5A (84W) Rated Current (10CFM forced air) 5A (120W) Ripple and Noise  Note 2 0~70℃ ≤100mV -30℃~0℃ ≤150mV Voltage ADJ. Range 22.8~25.2V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time ≤0.5S (110/220Vac input, Full load) Hold up Time ≥10Ms @110Vac input ; ≥40Ms @220Vac input  Full load Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <±5.0% INPUT VoltageRange  Note 3 80Vac~264Vac; 113~370Vdc Rated input voltage range 100~240Vac; 133~308Vdc FrequencyRange 47Hz-63Hz Efficiency ( Typical) 90% AC Current (max.) ≤2.5 A/110VAC  ≤1.5 A/220VAC Inrush Current (Typical) ≤30 A/110VAC  ≤60A/220Vac     Cold start Leakage Current Input to PG: ≤1mA   Input to output: ≤0.5mA (264Vac input, 63Hz) PROTECTION Over Current 5.75~7.5A, hiccup mode, auto recovery Over Power 138~180W, hiccup mode, auto recovery Over Voltage 26.4~31.2V, Constant voltage, auto recovery Shorted Circuit Long-term mode, auto recovery Function Fan Supply 12V @ 0.5A for driving a fan; tolerance ±15% ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC   (Note 3) Safety Standards Meet UL62368, EN62368 Withstand Voltage Primary-Secondary:4KVac/5mA; Primary to PG: 2KVac/5mA; Secondary-PG: 1.5Vac/5mA Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55032 Class B Harmonic Current Compliance to EN61000-3-2, Class A EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 101.6×50.8×29mm (4’’*2’’*1.14’’) Packing 45PCS/CTN, 15.2KGS, 0.023CBM Cooling method 84W free air convection; 120W with 10CFM forced air NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com Focus on the development of Industrial power supply for many years,make efforts to meet customers' requirements and search for long-term cooperation.24 hours online service affiliates you to contact us.

Ø  No Load power consumption<0.5W Ø  Universal AC input range Ø  Miniature size, high power density, high efficiency, long life and high reliability Ø  Withstand 300VA surge input for 5 sec. Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temp (-20℃~70℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  PCB soldering side with conformal coating Ø  Suitable for critical applications Ø  3 years warranty MODEL PD-15-3.3 PD-15-5 PD-15-12 PD-15-15 PD-15-24 OUTPUT DC Output 3.3V 5V 12V 15V 24V Rated Current 4A 3A 1.3A 1A 0.7A Current Range     Note 1 0~4A 0~3A 0~1.3A 0~1.0A 0~0.7A Ripple and Noise  Note 2 -25~70℃ <50mV <50mV <120mV <120mV <120mV Voltage ADJ.  Range 3.1V-3.5V 4.75V-5.25V 11.4V-12.6V 14.25V-15.75V 22.8V-25.2V Voltage Accuracy ±3% Line Regulation ±1% Load Regulation ±2% Set-up Time ＜2.0S (120Vac input, Full load); ＜1.0S (230Vac input, Full load) Hold up Time ＞10mS(120Vac input, Full load); ＞20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~264Vac Frequency Range 47Hz~63Hz Efficiency ( Typical) 70% 76% 80% 81% 83% AC Current (max.) 0.7A Inrush Current (Typical) 20A@120Vac   40A@230Vac   Cold start Leakage Current Input—output:<0.25mA     Input—PG:<3.5mA PROTECTION Over Load 105%~150% of rated output current, Hiccup mode, auto recovery Over Voltage 105%~150% of rated output voltage, Constant Voltage  Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃;  20%~90%RH  No condensing Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022,EN55024 ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 79×51×28mm Packing 48PCS/CTN, 10.4KGS, 0.03CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4.  Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. We always can deliver high-end quality industrial power supply to our customers on time.Welcome you to contact us for more power supply information and look forward to working with you!

Ø  Universal AC input (90~264Vac) Ø  Built-in active PFC,PF>0.95 Ø  No load power consumption<5W Ø  Withstand 300Vac surge input Ø  High efficiency up to 90% Ø  Output protection: SCP/OLP/OPP/OVP/OTP Ø  Wide operating ambient temperature (-30~70℃) Ø  Operating altitude up to5000m Ø  PCB soldering side with conformal coating Ø  All using105 ℃long life electrolytic capacitor Ø  100% full load burn-in test Ø  Cooling by free air convection Ø  3 years warranty SPECIFICATION                                                       MODEL PDF-350-12 PDF-350-24 PDF-350-48 OUTPUT DC Output 12V 24V 48V Rated Current 25A 14.6A 7.3A CurrentRange    Note 1 0~25A 0~14.6A 0~7.3A Peak Load 30A(last 60S, 230Vac input) 18A(last 60S, 230Vac input) 9A(last 60S, 230Vac input) Ripple and Noise  Note 2 0~70℃ ≤150mV ≤240mV ≤240mV -30℃ ≤240mV ≤480mV ≤480mV Voltage ADJ. Range 11.6~13.2V 23.5~26.5V 47~52.8V Voltage Accuracy ±3.0% Line Regulation ±1.0% Load Regulation ±2.0% Set-up Time ≤3S (230Vac input, Full load) Hold up Time ≥10mS (230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange   90Vac~264Vac FrequencyRange 47Hz--63Hz Power Factor(Typical) PF＞0.98/115VAC   PF＞0.95/230VAC Efficiency ( Typical) ≥90% (230Vac input, full load) ≥90% (230Vac input, full load) ≥93% (230Vac input, full load) AC Current (max.) <5.0A Inrush Current (Typical) <40A@230Vac  <20A@115Vac  Cold start Stand by power consumption <5W Leakage Current Input—output:<0.25mA    Input—PG:<3.5mA PROTECTION Over Load 26.3~37.5A, constant current 15.33~21.9A, constant current 7.7~11A, constant current Over Power 315~450W, constant current 368~525W, constant current 368~525W, constant current Over Voltage 13.8~16.0V 26.5~36V 50~63V Constant voltage, auto recovery Over Temperature 95℃±5℃(detect on temperature controller) shut down o/p voltage, auto recovery after temperature goes down to50C Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃; 20%~90%RH No condensing(refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC   (Note 3) Safety Standards UL60950-1 ;EN60950-1:2006 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. Isolation Resistance 10Mohms EMI Conduction & Radiation Compliance to EN55022,FCC PART 15 Class B Harmonic current Compliance to EN61000-3-2，CLASS D EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 199×99×50mm Packing 12PCS/CTN, 13.5KGS, 0.04CBM Cooling method Free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com

Ø  Universal AC input(90~264Vac) Ø  Built-in active PFC function, PF>0.95 Ø  High efficiency, long life and high reliability Ø  Output protection: OLP/OVP/OTP/SCP Ø  Wide operating ambient temperature (-30℃~70℃) Ø  150%(750W) peak load capacity Ø  Constant current output Ø  Build in remote ON-OFF control Ø  1 U low profile,40.7mm Ø  High efficiency up to 92% Ø  PCB soldering side with conformal coating Ø  Forces air cooling by DC Fan       Ø  3 years warranty MODEL PDF-500L-24 OUTPUT DC Output 24V Rated Current 21A Ripple and Noise Note 2 0-70℃ ≤240mV -30℃ ≤480mV Voltage ADJ.  Range 23.5~26.5V Voltage Accuracy ±3% Line Regulation ±1% Load Regulation ±2% Set-up Time ≤3S (230Vac input, Full load) Hold up Time ≥10mS /(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~264Vac Frequency Range 47Hz--63Hz Power Factor(Typical) PF＞0.98/115VAC    PF＞0.95/230VAC Efficiency ( Typical) ≥92% at 230Vac, full load AC Current (max.) <8A Inrush Current (Typical) <20A@115Vac  ; <40A@230Vac     Cold start Leakage Current Input—output: ≤0.1mA     Input—PG: ≤0.75mA Standby power consumption <1.5W PROTECTION Over Load ≥25A, ≤31.2A,Constant current limiting for some time(31.2A, last ≥3S) then PS stop working for 7S,after 7S,if the load <=rated current, PS will work normally, auto recovery Over Voltage 29~34V, Constant voltage, auto recovery Over Temperture 95℃+5℃(detect on thermal protector temperature);shut down,auto recovery after the temperature goes down to50℃ Short Circuit Long-term mode, constant current, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃;  20%~90%RH  No condensing  (refer to derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC    (Note 3) Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVdc;≤10mA. Isolation Resistance 10M ohms EMI Conduction&Radiation Compliance to EN55022, FCC PART 15  CLASS B Harmonic Current Compliance to EN61000-3-2, class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Remote control Pls refer to below detailed description PG signal POWER GOOD warning signal, normal: 5+0.3V; abnormal: 0-0.8V Dimension  (L*W*H) 218*116.5*40.7mm Packing 6PCS/CTN, 8.0KGS, 0.04CBM Cooling method Fored air cooling(Built-in DC Fan, controlled by temperature and load) Fan working: temperature controller up to 60±10℃or Output Current >10±1A Fan stop working: temperature controller down to 40±10℃or Output Current<9±1A NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com. We are specializes in the research and production of industrial power supply,will go with you all the way.We sincerely invite you to work with us together.

Ø  Universal AC input/ Full range Ø  High Efficiency, and High reliability Ø  Ultra-miniature size, low profile Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temperature (-25℃~70℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  3 years warranty MODEL PD-20-3.3 PD-20-5 PD-20-12 PD-20-15 PD-20-24 PD-20-48 OUTPUT DC Output 3.3V 5V 12V 15V 24V 48V Rated Current 4A 4A 1.67A 1.34A 0.84A 0.42A Current Range     Note 1 0~4A 0~4A 0~1.67A 0~1.34A 0~0.84A 0~0.42A Ripple and Noise  Note 2 0~60℃ <50mV <50mV <50mV <50mV <50mV <100mV -20~0℃ <75mV <75mV <75mV <75mV <75mV <100mV Voltage ADJ.  Range 3.1~3.6V 4.4~5.6V 11.1~13.1V 13.7~16.1V 22.0~25.4V 45.6~50.4V Voltage Accuracy ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% ±2.0% Set-up Time ＜2.0S (115Vac input, Full load); ＜1.0S (230Vac input, Full load) Hold up Time ＞10mS(115Vac input, Full load); ＞20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   85Vac~264Vac,120Vdc~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vacinput 69% 76% 79% 80% 80% 80% 230Vacinput 68% 75% 78% 79% 79% 79% AC Current (max.) 0.4A 0.5 0.5A 0.5A 0.5A 0.5A Inrush Current (Typical) Cold start  20A@115Vac    40A@230Vac      Leakage Current Input—output:<0.35mA     Input—PG:<0.75mA PROTECTION Over Load 105%~150% rated output power; Hiccup mode, auto recovery Over Voltage 110%~140% of rated output voltage, Constant Voltage.  Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃;  20%~90%RH  No condensing(refer to the derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY & EMC Note 3 Safety Standards UL60950-1; EN60950-1：2006 Withstand Voltage Primary-Secondary:3.0KVa;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100Mohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB Harmonic Current Compliance to EN61000-3-2,17625.1-2003 EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 89×51×20mm Packing 60PCS/CTN, 7.6KGS, 0.017CBM Cooling method Cooling by free air convection NOTE 1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.        The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. We are Industrial power supply manufacturer with competitive price and good quality,which are widely recognized and trusted by users and can meet social needs.

Ø  Universal AC input (90~264Vac) Ø  Built-in active PFC function, PF>0.96 Ø  Using ZVS technology to reduce power dissipation Ø  Output protection: OVP/OLP/SCP/OPP/OTP Ø  Built in Fan speed control Ø  Built in AC inrush current limiting circuit(<20A) Ø  Build in constant current limiting circuit Ø  Built in Remote Sense Function Ø  Build in DC-OK / remote sense signal Ø  Wide operating ambient temperature (-30℃~70℃) Ø  PCB with conformal coating Ø  1 U low profile,41mm      Ø  3 years warranty  MODEL PDF-800-24 PDF-800-36 PDF-800-48 OUTPUT DC Output 24V 36V 48V Rated Current 33A 22A 16.5A Ripple and Noise Note 2 ≤200mV ≤200mV ≤200mV Voltage ADJ.  Range 21.6~26.4V 32.4~39.6V 43.2~52.8V Voltage Accuracy ±2% Line Regulation ±0.5% Load Regulation ±2% Set-up Time ≤3S (220Vac input, Full load) Hold up Time ≥8mS (220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~264Vac Frequency Range 47Hz--63Hz Power Factor(Typical) PF≥0.96/230VAC     PF≥0.98/115VAC     Full Load Efficiency ( Typical) ≥89% ≥89% ≥89% AC Current (max.) ≤12 A Inrush Current (Typical) ≤20A @220Vac       Cold start Leakage Current Input—output: ≤0.25mA     Input—PG: ≤3.5mA INPUT PROTECTION Low-voltage protection point 75~85Vac, shut down. Low-voltage recovery point 80~90Vac, Auto recovery Over-voltage protection point 280~295Vac, shut down. Over voltage recovery point 275~285Vac, Auto recovery OUTPUT PROTECTION Over Current 36.3~44.55A 24.2~29.7A 18.15~22.3A Protection type: Constant current, auto recovery Over power 871.2~1069.2W 871.2~1069.2W 871.2~1069.2W Protection type: Constant current, auto recovery Over Voltage 27.6~36V 41~45V 55.2~60V Protection type: Constant voltage, auto recovery Over Temperature 105℃+5℃(detect on Mosfet temperature);shut down, auto recovery after the temperature goes down to 75℃ Short Circuit Long-term mode, constant current, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃;  20%~90%RH  No condensing  (refer to derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC    (Note 3) Safety Standards UL60950-1; EN62368-1 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVac/10mA. Isolation Resistance 10M ohms EMI Conduction & Radiation Compliance to EN55032  Class B Harmonic Current Compliance to EN61000-3-2,Class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 226×116.5×41mm Packing 12PCS/CTN, 16.8KGS, 0.04CBM Cooling method Forced air cooling (Built-in fan, the fan speed is controlled by load and internal temp.) DC OK 4-6V (when output voltage is normal) NOTE 1.      All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.      Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com.cn. Powerld switching power supply, we focus on high quality!
