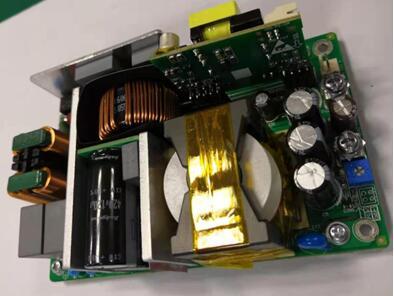

PSF-550S

  • Brand:

    POWERLD
  • Item NO.:

    PSF-550S
  • Wattage (W):

    550
  • Input:

    80~264Vac
  • Output:

    12, 24, 36, 48, 54
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

  • Dimension:

    127*76.2*40.5mm (5'*3'*1.59'inch)
  • Product Detail

Ø  Universal input 80~264Vac or 113~370Vdc

Ø  Built-in Active PFC, PF≥0.95

Ø  400W convention, 550W forced air

Ø  No load power consumption<0.5W by PS­_ON/OFF

Ø  Extremely low leakage current≤0.1mA

Ø  12V/0.5A fan supply

Ø  Output protections: SCP/OVP/OCP/OTP

Ø  Wide operating ambient temperature (-40℃~70)

Ø  Operating altitude up to 5000m

Ø  5’’*3’’ Compact size

Ø  Meet medical safety(2*MOPP)

Ø  Fit for Class I & Class II configuration

Ø  3 years warranty

MODEL

PSF-550S-12

PSF-550S-24

PSF-550S-36

PSF-550S-48

PSF-550S-54

OUTPUT

DC Output

12V

24V

36V

48V

54V

Rated Current (Convection)

33.4A

16.7A

11.1A

8.34A

7.4A

Rated Current (16CFM forced air)

41.7A

22.9A

15.3A

11.46A

10.2A

Rate Power(Convection)

400.8W

400.8W

399.6W

400.3W

399.6W

Rate Power(16CFM forced air)

500.4W

549.6W

550.8W

550W

550.8W

Ripple and Noise @25℃ Note 2

200mVp-p

Voltage ADJ.  Range

11.4~12.6V

22.8~25.2V

34.2~37.8V

45.6~50.4V

50.5~54V

Voltage Accuracy

±2%

Line Regulation

±1.0%

Load Regulation

±1.0%

Set-up Time

1.0S (230Vac input, Full load)

Hold up Time

8mS @115/230Vac input   Full load

Temperature Coefficient

±0.02%/℃

Overshoot

<5.0%

INPUT

Voltage Range   Note 3

80~264Vac or 113370Vdc

Rated input voltage range

100~240Vac

Frequency Range

47Hz-63Hz

Efficiency ( Typical)

93.5%

94%

94%

94%

94%

Power Factor(Typical)

0.95 @ 100~240Vac  full load

AC Current (max.)

6.5A

Inrush Current (Typical)

40A@115Vac ; 80A @ 230Vac      Cold start

Leakage Current

Touch current ≤0.1mA   @ ac input to dc output

PROTECTION

Over Current

110%~150%, hiccup mode, recovers automatically after fault condition is removed

Over Voltage

110%~130%, constant voltage, recovers automatically after fault condition is removed

Over temperature

Shut down o/p voltage, recovers automatically after temperature goes down

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-40℃~70℃;  20%~90%RH  No condensing (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃;  10%~95%RH  No condensing

Operating altitude (Note 3)

5000 meters

SAFETY &EMC

(Note 4)

Safety Standards

IEC62368 / IEC60601

Withstand Voltage

Primary-Secondary: 4KVac/5mA; Primary to PG: 2.0KVac/5mA; Secondary-PG: 1.5Vac/5mA

Isolation Resistance

100M ohms

EMI Conduction&Radiation

Compliance to EN55032 Class B(Class I);

Harmonic Current

Compliance to EN61000-3-2, Class A

EMS Immunity

Compliance to EN61000-4-2,3,4,6,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25)

5V standby

5V/1A,tolerance ±2%, ripple : 120mVp-p(max.)

PS_ON/OFF

Power ON: PS-ON/OFF, "Hi" or " > 2 ~ 5V" ;

Power OFF: PS-ON/OFF,"Low" or " < 0 ~ 0.5V"

POWER GOOD / POWER FAIL

500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ;

The TTL signal goes low at least 1ms before Vo below 90% of rated value

Dimension  (L*W*H)

127*76.2*40.5mm (5’’*3’’*1.59’’ inch)

Packing

TBD

Cooling method

400W free air convection; 550W with 16CFM forced air

NOTE

1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.     Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.     The ambient temperature derating of 0.5/100m for operating altitude higher than 2000m.

4. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
