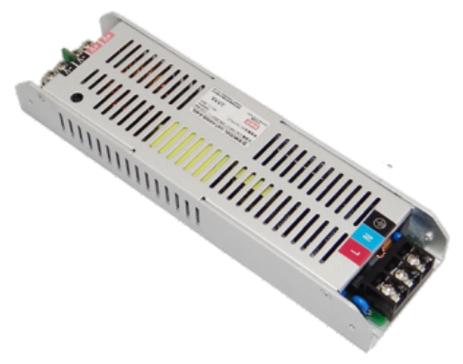

VAT-UP400S-X-60L-A

  • Brand:

    POWERLD
  • Item NO.:

    VAT-UP400S-X-60L-A
  • Wattage (W):

    400
  • Input:

    90-264Vac
  • Output:

    4.2, 4.6, 4.8, 5
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL, CB, CE
  • Dimension:

    235*60*30mm
  • Product Detail

l  AC input: 90-264Vac

l   Built-in Active PFC, PF>0.93

l   Output protections: OLP/SCP/OTP/OPP

l   Wide operating ambient temperature  (-40℃~80℃)

l   No fan suitable for quiet environment

l   100% full load burn-in test

l   Long life and high reliability

l   High efficiency up to 90%

l   Conformal coating

l   Low profile, 30mm

l   3 years warranty

MODEL

VAT-UP400S-5-60L-A

OUTPUT

DC Output

5V

Output Pre set voltage

5.0-5.10V (220Vac input, load 0A)

Rated Current

80A

CurrentRange    Note 1

0~80A

Peak load

90A, last 50mS @ 220Vac

Ripple and Noise

25~80℃

≤150mV

Voltage Adj. Range

4.15~5.10V

Voltage Accuracy

±2.0%

Line Regulation

±0.5%

Load Regulation

±2.0%

Set-up Time

≤2.5S (110Vac input, Full load), ≤1S (220Vac input, Full load)

Hold up Time

≥10mS(220Vac input, 80% load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5%

INPUT

VoltageRange

90Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

90%(220Vac input ,full load)

AC Current (max.)

<5A

Inrush Current (Typical)

<80A@220Vac     Cold start

Power factor

>0.93(220Vac input ,full load);  >0.95/(110Vac input ,full load)

PROTECTION

Over Power

425W~550W, Hiccup mode, auto recovery

Over Current

85A~110A, Hiccup mode, auto recovery

Shorted Circuit

Long-term mode, auto recovery

Over Temperature

105℃+5℃(detect on Q1/D1 batten);shut down, auto recovery after the temperature goes down

ENVIRONMENT

Operating amb. Temp. & Hum.

-40℃~80℃; 20%~90%RH No condensing  (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

GB4943-2001; EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG:0.5KVDC/10mA.

Leakage Current

Input—output: ≤0.25mA    Input—PG: ≤3.5mA (264Vac input,63Hz)

Isolation Resistance

10Mohms

EMI Conduction & Radiation

EN55022, EN55024, FCC Part 15, Class B


Harmonic Current

EN61000-3-2 CLASS D

EMSImmunity

EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

>200,000Hrs,full load

Dimension (L*W*H)

235*60*30mm

Packing

18pcs/CTN

Cooling method

Free air flow (Fixed to aluminum heatshink of customer’s system)

NOTE

1.    All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2.    Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 100uF parallel capacitor.

3. The SPS is considered a component which will be installed into final equipment. We cannot guarantee that the final equipment will meet EMC directives, Final product manufactures must be re-confirm that their product meets EMC directives.
