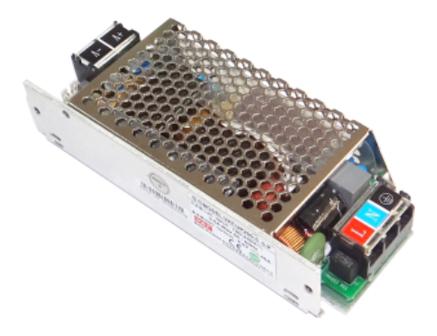

Brand:
POWERLDItem NO.:
VAT-UP200-X-P-AWattage (W):
200Input:
90-264VacOutput:
4.2, 5PFC:
YConformal Coating:
YApproval:
UL, CB, CEDimension:
133*55*30mmØ Universal AC input (90~264Vac)
Ø With Active PFC, PF>0.95
Ø Surge 300Vac for 60S
Ø High Efficiency, long life and High reliability
Ø Output protections: OLP/OVP/SCP/OPP
Ø 1+1 parallel function, current sharing
Ø Wide operating ambient temperature (-40℃~65℃)
Ø Operating altitude up to5000m
Ø All using 105℃ long life electrolytic capacitors.
Ø 100% full load burn-in test
Ø Fanless, quiet working
Ø PCB with conformal coating
Ø Low profile, 30mm
Ø 3 years warranty
MODEL |
VAT-UP200-4.2-P-A |
VAT-UP200-5-P-A |
||
OUTPUT |
DC Output |
4.2V |
5V |
|
Rated Current |
40A |
40A |
||
CurrentRange Note 1 |
0~40A |
0~40A |
||
Peak load |
50A(50mS, 220Vac input) |
|||
Ripple and Noise Note 2 |
0~65℃ |
≤150MV |
≤200MV |
|
Voltage Accuracy@-40~65C |
4.15~4.4V |
±3% |
||
Line Regulation/ |
±0.5% |
|||
Load Regulation |
±2% |
|||
Set-up Time @25℃ |
≤2S (220Vac input,40A) |
|||
Hold up Time |
≥5mS (220Vac input,32A) |
|||
Temperature Coefficient |
±0.03%/℃ |
|||
Overshoot and Undershoot |
<5.0% |
|||
Parallel (current sharing) |
Current-unbalance< 10% (single PS drive40Aload, the voltage of current share bus is 2.9~4V) |
|||
INPUT |
VoltageRange Note 3 |
90Vac~264Vac |
||
FrequencyRange |
47Hz~63Hz |
|||
Efficiency ( Typical) |
86% (220Vac input,40A) |
88% (220Vac input,40A) |
||
AC Current (max.) |
<3.5A |
|||
Inrush Current (Typical) |
<60A@220Vac Cold start |
|||
Power Factor @25℃ |
>0.95 (input 220Vac,40A) |
|||
Stand by power consumption |
<4W (input 220Vac) |
|||
Leakage Current |
Input—output:<0.25mA Input—PG:<3.5mA (input 264Vac, 63Hz) |
|||
PROTECTION |
Over Load |
44~65A, hiccup mode, auto recovery |
44~65A, hiccup mode, auto recovery |
|
Over Power |
184.8~252W, hiccup mode, auto recovery |
220~325W, hiccup mode, auto recovery |
||
Over Voltage |
4.5~6.5V, hiccup mode, auto recovery |
5.2~6.5V, constant voltage |
||
Over Temperature |
105℃+5℃(detect on temperature controller);shut down, auto recovery after the temperature goes down to65℃ |
|||
Short Circuit |
Long-term mode, auto recovery |
|||
ENVIRONMENT |
Operating amb. Temp. & Hum. |
-40℃~65℃; 20%~90%RH No condensing(refer to the derating curve) |
||
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
|||
SAFETY &EMC (Note 4) |
Safety Standards |
UL60950-1 2ndEd; IEC 60950-1:2005(2ndEd) ;EN60950-1:2006
|
||
Withstand Voltage |
Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. |
|||
Isolation Resistance |
10Mohms |
|||
EMI Conduction&Radiation |
Compliance to EN55022 CLASS B |
|||
EMSImmunity |
Compliance toEN61000-4-2,3,4,5,6,8,11; |
|||
OTHERS |
MTBF (MIL-HDBK-217F) |
>200000h (25℃, Full load) |
||
Dimension (L*W*H) |
133*55*30mm |
|||
Packing |
49PCS/CTN, 15KGS, 0.04CBM |
|||
Power Good Signal |
Working properly, port voltage: 3.0~3.5V(output current 0~1mA) |
|||
Working abnormally, port voltage: 0~0.7V(pull-up resistor > 10K) |
||||
Cooling method |
Cooling by free air convection |
|||
NOTE |
1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttps://www.powerld.com. |
